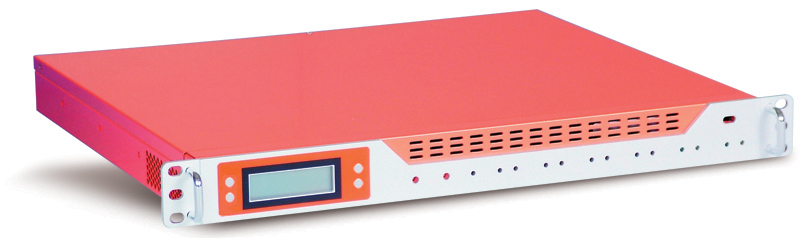

The SPS-501 pictured above has the following features:
- Capacity for well over 1000 simultaneous active calls and 500 customer tunnels.
- Near instantaneous fail-over to a second server without losing calls in progress.
- Dynamic routing via BGP or OSPF for automatic injection of ViBE customer routes in to the backbone network.
- Create VPNs between sets of customer CPE devices.
- Up to 6 Ethernet interfaces to support varied network topographies.
- 802.11q VLAN tag support.
- Transparent bridging between interfaces and/or VLANs.
- Full firewall and NAT capability.
- Source or ToS based policy routing.
- Traffic monitoring via SNMP.
- ViBE status monitoring including calls in progress and network quality.
- User-friendly web based configuration.
Mechanical & Environmental
- Operating Temp. 0 ~ 45ºC (32 ~ 113ºF)
- Operating Humidity 5 ~ 95% (non-condensing)
- Dimension (W x D x H) 482 x 420 x 44 mm (19" x 16.54" x 1.73")
Power Supply
- AC Input 100 ~ 240V, 50 ~ 60Hz
- DC Output ATX 300W
| Codec |
With Vibe enabled each call uses |
Without Vibe including normal overheads a call = |
No of calls per 256kbps of bandwidth approved for use with ViBE |
| G.729 |
8.1kbps |
42.4kbps |
28 ( 700% improvement ) |
| G.711 |
64.1kbps |
106kbps |
3 ( 50% improvement ) |
| G.722 |
32.1kbps |
63.6kbps |
7 ( 233% improvement ) |
| GSM |
13.1kbps |
42.4kbps |
17 ( 340% improvement ) |
*
All document will in Portable Document Format (PDF).
For details : sales@icg-corp.com
